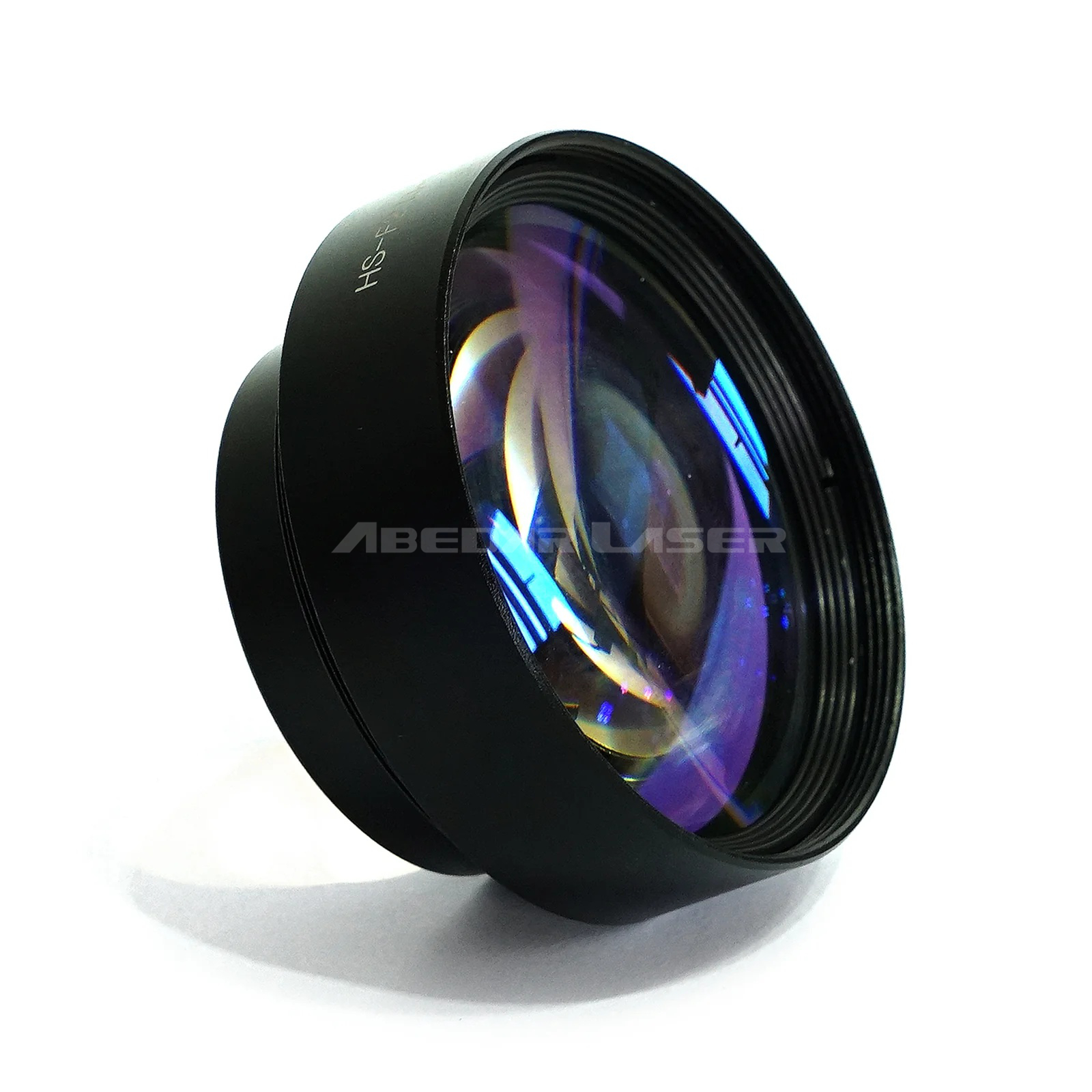

F-Theta Field Lenses for Laser Cleaning Machines

Elevate your industrial cleaning process with our high-performance F-Theta Field Lenses, specifically engineered for Laser Cleaning Machines. As the crucial optical component in your laser system, our field lens ensures a uniform, precise laser spot across the entire working area, maximizing efficiency and protecting the integrity of your substrate materials. Experience the difference a premium lens makes in rust removal, paint stripping, and surface preparation.

Material Excellence: Durability Meets Optical Clarity

The foundation of a superior laser lens lies in its material. Our F-Theta field lenses for laser cleaning are crafted to withstand the demands of high-power laser applications:

• Premium Substrate: Primarily manufactured from high-grade Fused Silica (Quartz Glass) or specialized Optical Glass. Fused Silica is the preferred choice for high-power laser cleaning systems due to its exceptionally low thermal expansion, excellent thermal shock resistance

• High-Damage Threshold Coating: Featuring a proprietary, which is essential for surviving the high peak power of pulsed laser cleaning.




Precision Specifications: Optimized for Uniform Cleaning

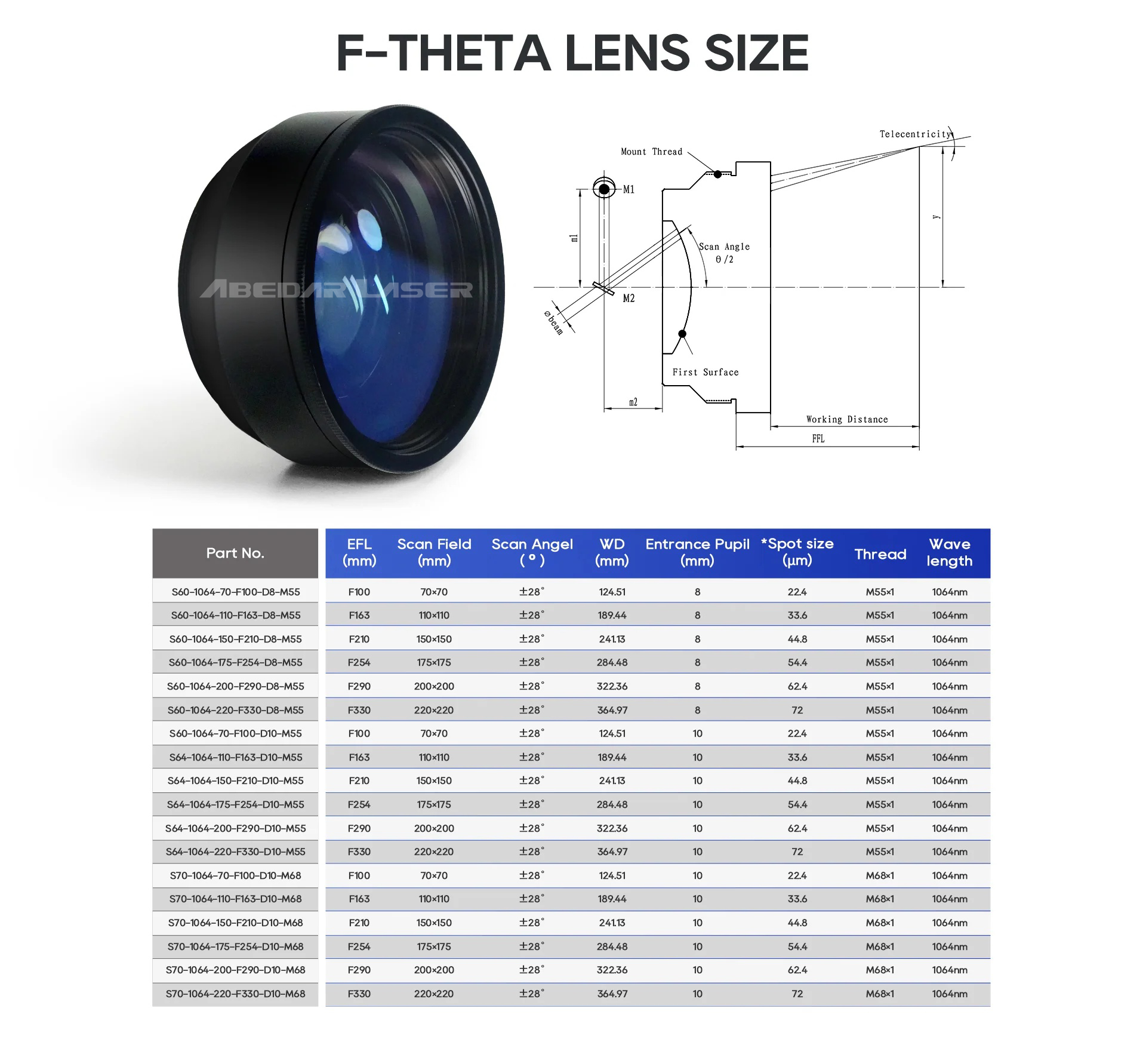

Abedar Laser F-Theta lenses are designed to convert the scanning motion of your galvanometer mirrors into a flat-field focus, ensuring consistent spot size and energy distribution across the cleaning surface.

Extended Lifespan: Maximizing Your Investment

The lifespan of your Laser Cleaning Optics is directly tied to quality and usage. Our lenses are designed for longevity:

• Expected Life: Under optimal conditions and with correct maintenance, our high-quality Fused Silica lenses can offer a lifespan of operational hours.

• Key Longevity Factor: The primary factor affecting lifespan is the integrity of the AR coating. High-LIDT coatings prevent thermal damage and power degradation over prolonged use, especially with high-energy pulsed lasers.

Essential Daily Maintenance: Preserving Peak Performance

Regular, correct maintenance is paramount for achieving the maximum lifespan and maintaining the efficiency of your Laser Cleaning Field Lens:

1. Immediate Inspection: Visually inspect the lens surface daily for dust, debris, or spatter. Even microscopic contamination can absorb laser energy, leading to thermal damage (burn spots) on the coating.

2. Cleaning Procedure: Use only high-grade optical lens tissue and spectroscopy-grade isopropyl alcohol (IPA) or a dedicated optical lens cleaning solution. Follow a 'drop and drag' technique to gently lift contaminants, never rubbing the surface aggressively.

3. Protective Environment: Ensure your laser head housing and the lens compartment are sealed, and the optional protective window (cover slide) is replaced regularly. The protective window is a low-cost, consumable barrier to protect the high-value F-Theta lens from cleaning debris.

4. Air Flow: For systems equipped with an air assist/purge, verify the flow is clean and directed correctly to prevent dust buildup on the lens surface.

Selection Guide: Choosing the Right Lens Specification

Selecting the correct F-Theta Field Lens is critical for both cleaning efficiency and system performance. Use this guide to match the lens to your application:

1. Determine Wavelength: For almost all industrial laser cleaning, you will need a lens optimized for 1064nm (Fiber Laser).

2. Define Cleaning Area (Scan Field):

• Small, Precision Jobs (e.g., electronic molds): These offer a smaller focused spot diameter and higher energy density

• Large, General Surface Cleaning (e.g., metal parts, rust removal):These lenses have a longer working distance and cover more area faster, though the spot size is slightly larger and energy density lower.

3. Check Compatibility: Confirm the lens Mounting Thread  matches your laser cleaning head (galvo scanner system).

4. Confirm Power Handling: For high-power pulsed systems, always select a lens made from Fused Silica with a clearly specified High-Damage Threshold coating.

Ready to achieve spotless, damage-free surfaces?

Upgrade to our premium F-Theta Field Lenses and unlock the full potential of your Laser Cleaning Machine. Contact us today for technical specifications and volume pricing.

Protect your investment today!

Browse our range of precision-engineered Field Lenses for Laser Cleaning Machine models and ensure continuous, flawless operation.

Contact our technical support team for bulk orders or assistance with specific sizing requirements.
