300W Pulsed Laser Cleaners: Advanced Surface Treatment Solutions | Industry Guide

Views: 0     Author: Site Editor     Publish Time: 08-08-2024      Origin: Site

Industrial cleaning challenges demand solutions that balance effectiveness with efficiency. The 300 watt pulse laser cleaner represents a breakthrough in surface treatment technology, offering non-abrasive, eco-friendly cleaning that outperforms traditional methods. This comprehensive guide examines why the 300w laser cleaner is becoming the go-to solution for automotive, aerospace, and manufacturing applications.

Understanding Pulsed Laser Cleaning Technology

Pulsed laser cleaning utilizes high-intensity light bursts to remove surface contaminants without damaging the substrate. The 300w pulsed laser operates at optimal power levels for industrial applications, balancing cleaning speed with precision control.

How 300W Laser Cleaners Work

The cleaning process relies on photomechanical interaction:

  • High-energy pulses (typically 100-200 nanoseconds) target surface contaminants

  • Contaminants absorb laser energy while the substrate reflects it

  • Instantaneous vaporization occurs through ablation

  • Vacuum systems remove resulting particles

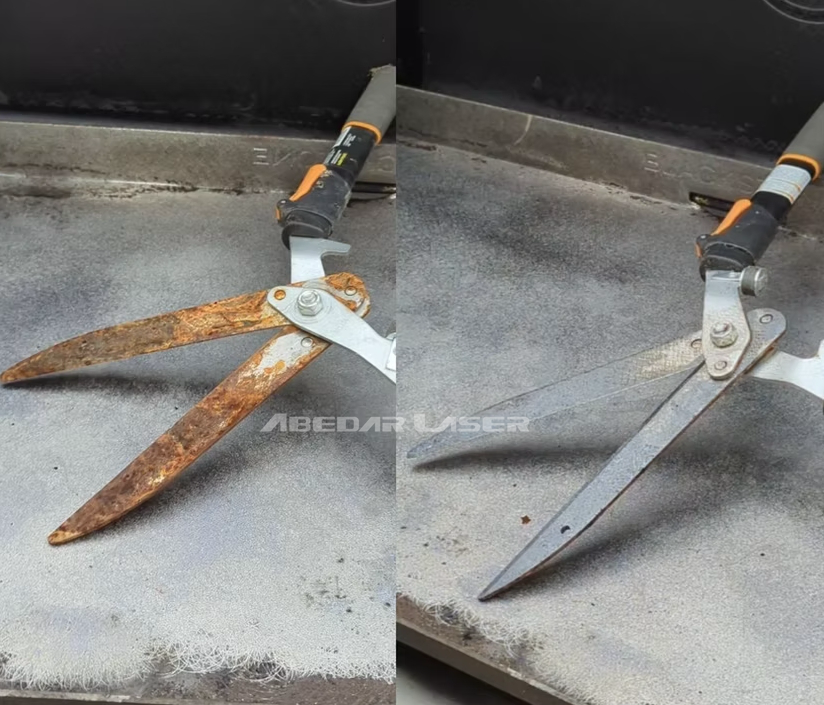

This selective process enables the 300 watt pulse laser cleaner to remove rust, paint, oxides, and oils while preserving the base material integrity.

Technical Advantages of 300W Systems

Precision Cleaning

The focused beam of a 300w pulsed laser removes contaminants layer-by-layer with micron-level precision, preserving delicate surfaces and intricate geometries.

Non-Contact Process

As a non-abrasive technique, 300w laser cleaner systems eliminate surface damage, tool wear, and part distortion common with mechanical methods.

Environmental Compliance

Unlike chemical stripping, the 300 watt pulse laser process generates no hazardous waste, VOCs, or secondary pollutants, simplifying regulatory compliance.

Reduced Operational Costs

With no consumables beyond electricity, 300w laser cleaner systems offer significantly lower per-part cleaning costs compared to traditional methods.

Performance Comparison: Laser vs Traditional Methods

Parameter Sandblasting Chemical Stripping 300W Pulsed Laser
Surface Preparation Quality Good (SA 2.5) Variable Excellent (SA 3)
Substrate Damage Risk High Moderate None
Operating Cost (per m²) $15-25 $20-40 $5-10
Environmental Impact High (particulates) Very High (hazardous waste) Minimal
Process Speed (m²/hr) 2-5 1-3 8-15

Technical Specifications for Industrial Applications

Laser Parameters

  • Average Power: 300W

  • Peak Power: 20-40 kW

  • Pulse Duration: 100-200 ns

  • Repetition Rate: 20-100 kHz

  • Wavelength: 1064 nm

System Configuration

  • Robotic Integration: 6-axis compatibility

  • Beam Delivery: Fiber optic or articulated arm

  • Spot Size: 0.1-20mm adjustable

  • Cooling System: Closed-loop chiller

Performance Metrics

  • Rust Removal: 5-10 m²/hr

  • Paint Stripping: 8-15 m²/hr

  • Oxide Removal: 3-8 m²/hr

  • Energy Consumption: 1.5-2.5 kW

Key Applications for 300W Laser Cleaners

Automotive Manufacturing

The 300w laser cleaner excels at weld seam cleaning, removing oxidation from cast components, and preparing surfaces for bonding or coating. Its non-contact nature makes it ideal for cleaning complex engine parts without risk of damage.

Aerospace Maintenance

In aerospace applications, the 300 watt pulse laser removes thermal barrier coatings, carbon deposits, and surface contaminants from turbine blades and other critical components while maintaining dimensional tolerances.

Historical Restoration

Conservation experts increasingly turn to 300w pulsed laser technology for restoring artifacts and architectural elements. The precision control allows removal of corrosion without affecting patina or underlying material.

Investment Considerations

When evaluating a 300 watt pulse laser cleaner system, consider these factors:

  • ROI Calculation: Typical payback period ranges from 8-18 months based on utilization

  • Integration Costs: Robotic cells may require additional engineering

  • Maintenance Requirements: Annual maintenance costs average 5-8% of initial investment

  • Training: Operators require specialized training for optimal resultsy to Transform Your Cleaning Process?

Industry-Leading Laser Technology

The 300w pulsed laser represents the next evolution in industrial surface treatment. With advantages in precision, efficiency, and environmental impact, these systems deliver compelling value across numerous applications. As technology advances and costs decrease, the 300 watt pulse laser cleaner is positioned to become standard equipment in progressive manufacturing and maintenance facilities worldwide.

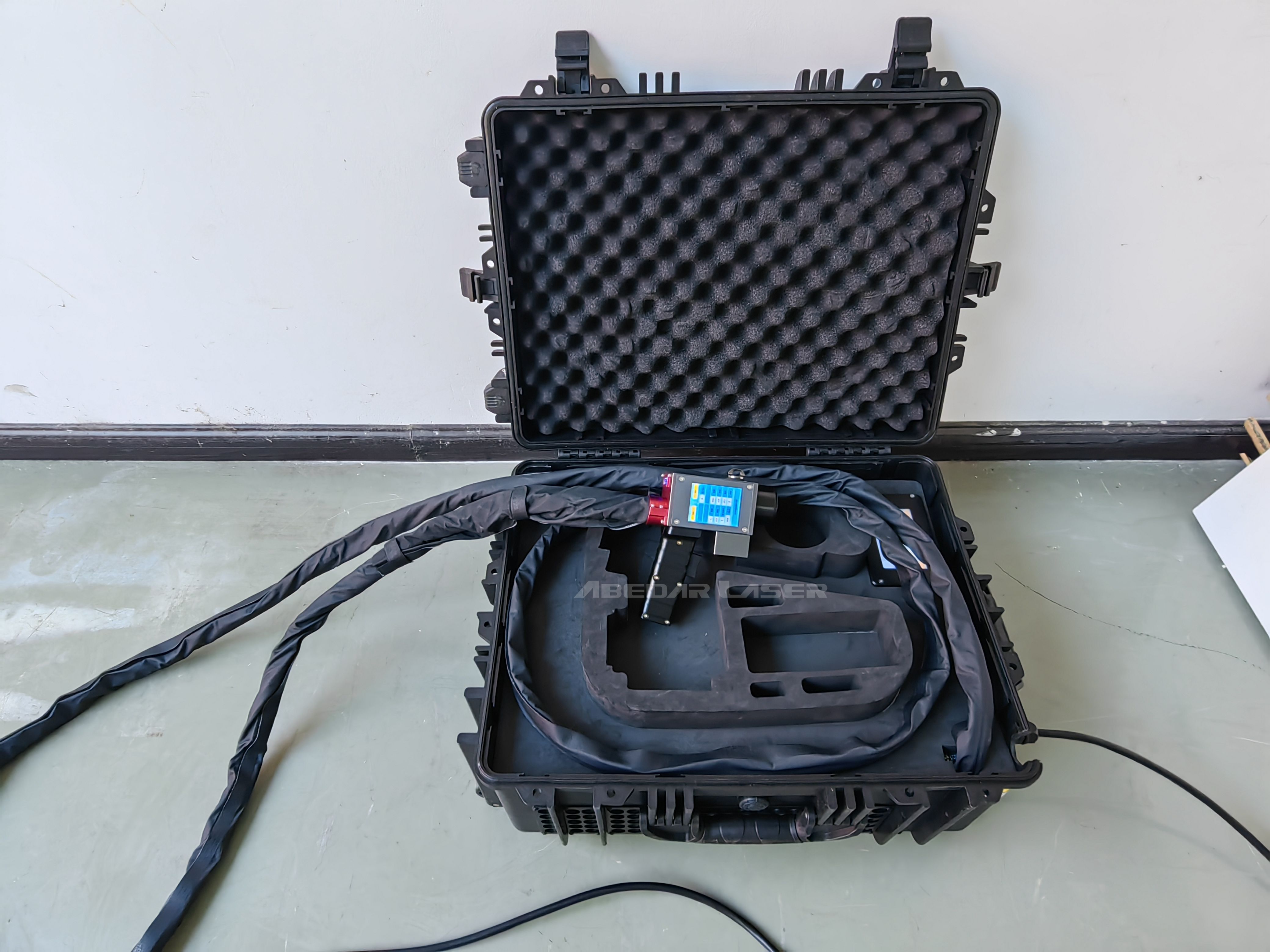

Abedar Laser laser rust removal tool (8)
